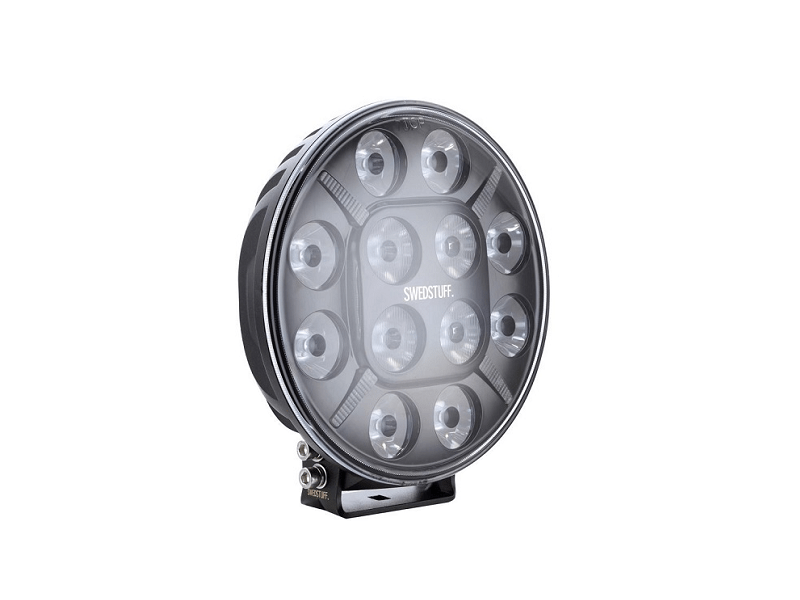

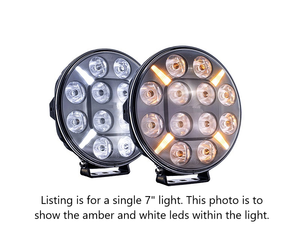

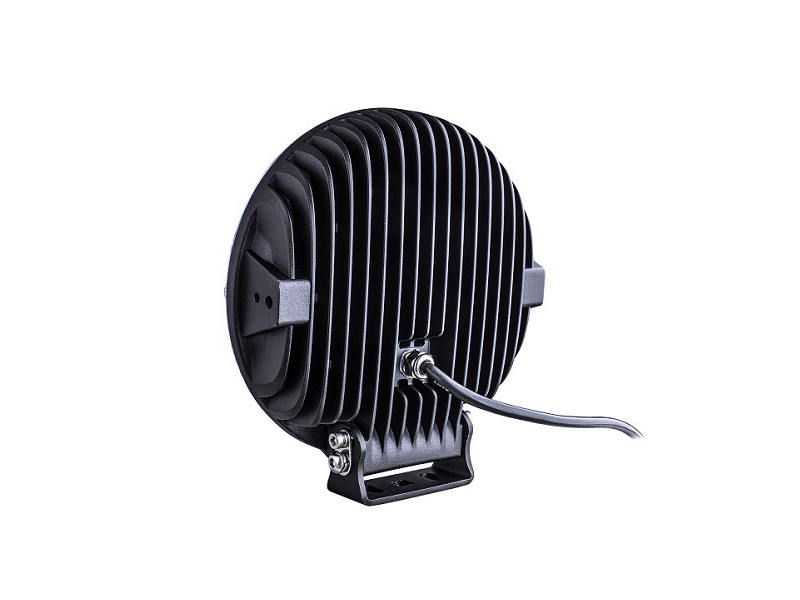

The slim 7 ”LED driving light with a modern look, efficient light output and durable quality. Comes with a single 7" driving light with dual position light – choose color between white and amber. The placement of the four position lights forms an eye-catching pattern that creates character and enhances the overall impression of your vehicle. LDL-03´s smaller size makes it particularly suitable for passenger cars. The lamp gives you a very effective light on the road, 1 LUX at 380 meters. The light mimics and enhances the car’s original headlights. An extended combination of length and width, perfect for varied driving. LDL-03’s TIR reflectors, total inner reflection, contribute to efficiency significantly more than traditional reflectors. The light is reflected, packed and directed before it is released. This means no unnecessary waste of useful light. The cooling fins on the back effectively cool the lamp when needed. By carefully drilling a hole through the these, they can also be used for mounting top stabilizers.- E-APPROVED- DUO POSTION LIGHT- TIR REFLECTORS
Sold individually.
- Type of Lamp LED
- PCS LED´s12
- Voltage (V DC)9-36V DC
- Theoretical effect (w) 12V60
- Theoretical effect (w) 24V60
- Consumption (w) 12V50
- Consumption (w) 24V48
- Theoretical lumen5400
- Actual lumen4590
- 1 LUX @ m380
- Kelvin6500
- IP-class68/69K
- Color housing Black
- Color lens Clear
- Color LED´s White/Amber
- Beam pattern Combo
- Position light Yes
- ConnectionDT4
- Cable length (mm)500
- Material bracket Stainless steel
- Material housing/chassis Aluminum-Alloy Die Castings(ADC12)
- Material lens Polycarbonate
- Depth (mm)65
- Height including bracket (mm)191,4
- Diameter (mm)180
- Operating temperature-40 - +60°C
- ADR-approved No
- E-approved Yes
- According to regulation ECE R112, R7
- Reference number30
- EMCECE R10
For optimal light stability use Strands top stabilizer braces available HERE.
